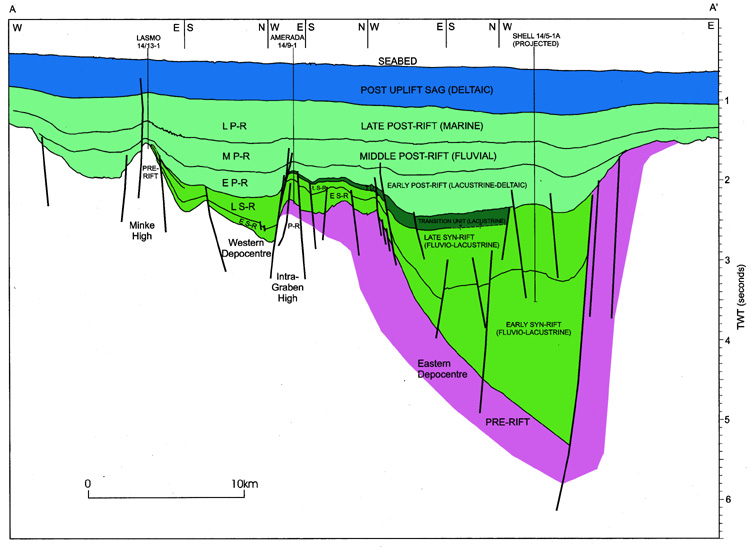

Fig. 3. Composite SW-NE cross section based on interpretations of seven intersecting seismic lines (four oriented E-W and three oriented N-S) traversing the North Falkland Basin. The section illustrates the relationships between the tectono-stratigraphic units in three of the wells. Vertical scale in milliseconds of two-way travel time (TWT). See Fig.1 for location.
