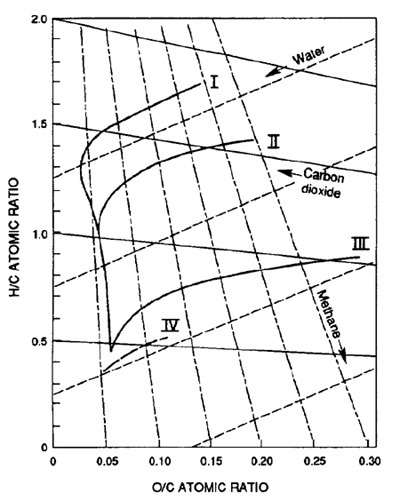

Figure 4. Van Krevelen diagram showing types of kerogen and pathways for generation of methane and elimination of carbon dioxide and water during coalification. Liptinite corresponds to types I and II kerogen, vitrinite to type III, and inertinite to type IV. Modified from Levine (1987).
