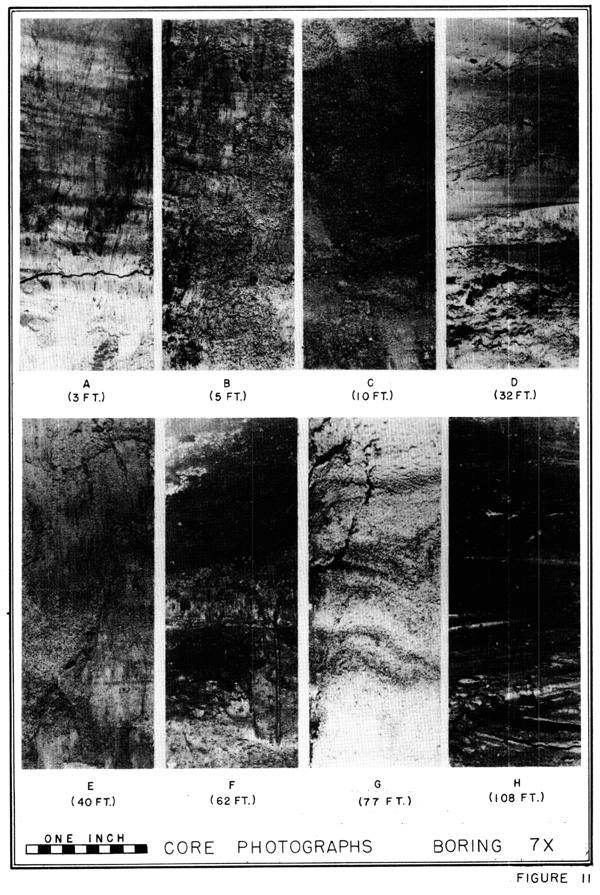

Figure 11. Core Photographs-Boring 7-X ;

A. Yellowish gray, organic sandy clay. Near top of Unit 10.

B. Yellowish gray, organic  clay and clayey sand. Lower part of Unit  10.;

C. Soft gray silty sand, Unit 9-A.;

D. Firm sand and sandy clay lenses in firm clay Unit 8.;

E. Soft gray clayey sand of Unit 7.;

F. Dark brown organic clay and wood of Unit 6.;

G. Medium to coarse sand in upper part of Unit 4.;

H. Reddish brown, thinly bedded stiff clay. Upper part of Unit 3
