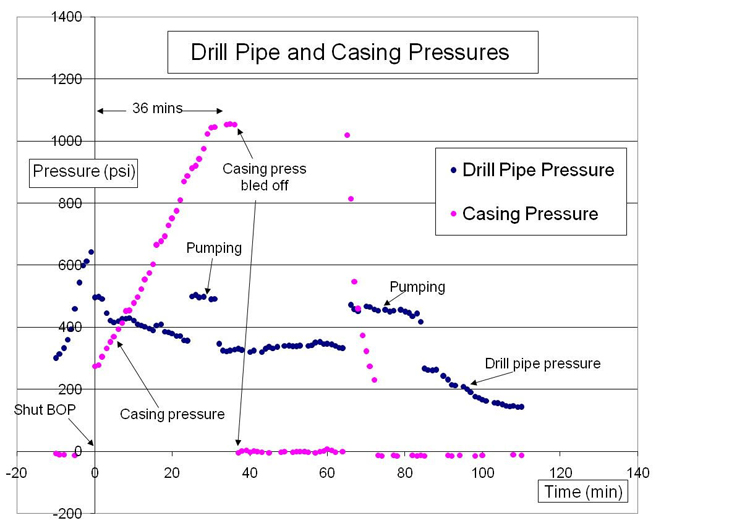

--> Figure 5. BJP-1 Real time data dated May 28, 2006. The maximum casing pressure was 1054 psi, pressure reading 30 min after shut in. Well was dead and BOP was opened at 10:00 hrs, May 28, 2006.

Datapages, Inc.Print this page

fig05

Figure 5. BJP-1 Real time data dated May 28, 2006. The maximum casing pressure was 1054 psi, pressure reading 30 min after shut in. Well was dead and BOP was opened at 10:00 hrs, May 28, 2006.
