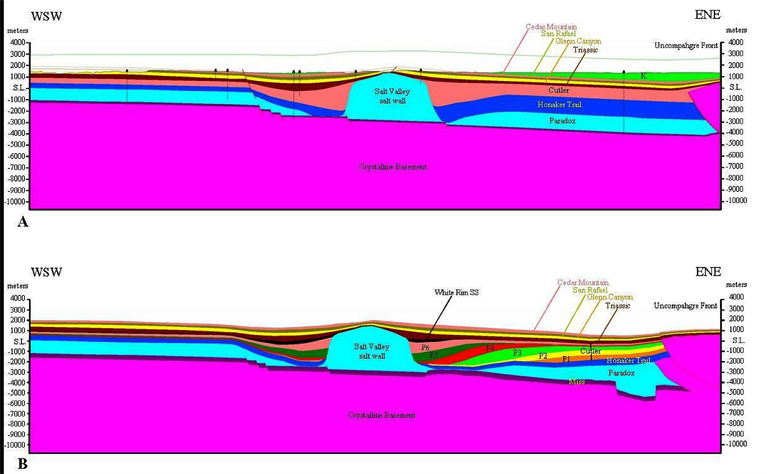

--> Figure 3. A) Structural cross section A based on the original Doelling’s (2001) model (after Trudgill et al., 2004). Present-day topography and wells included. B) Modified section after integrating seismic data and Ge’s (1996) physical model.
