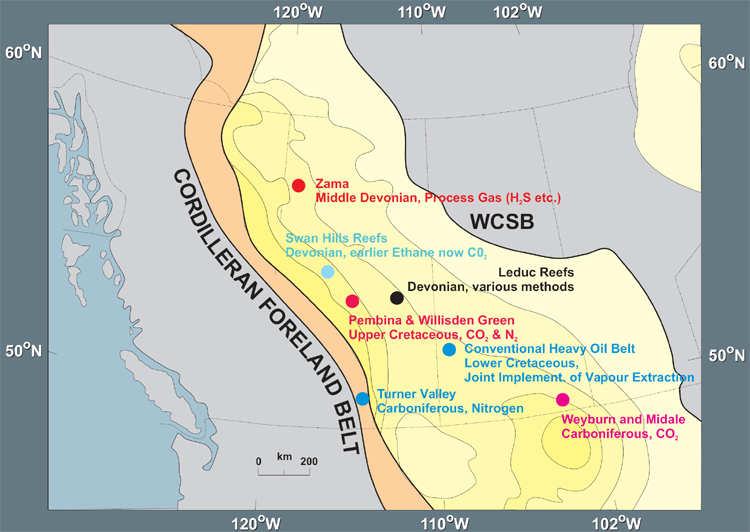

Figure 4. Map of the Western Canada Sedimentary Basin, indicating the thickness of the succession and the location of select planned, current, and historical programs of Tertiary recovery (generalized).
