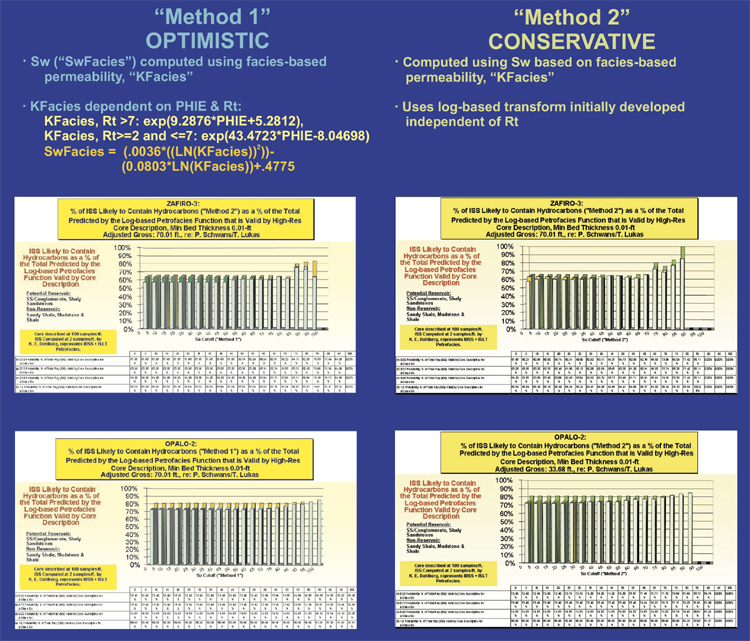

Figure 15. Left: Percent ISS likely to contain hydrocarbons (“Method 1”--Optimistic)--Zafiro-3 above Opalo-2. Right: Percent ISS likely to contain hydrocarbons (“Method 2”--Conservative)--Zafiro-3 above Opalo-2.
