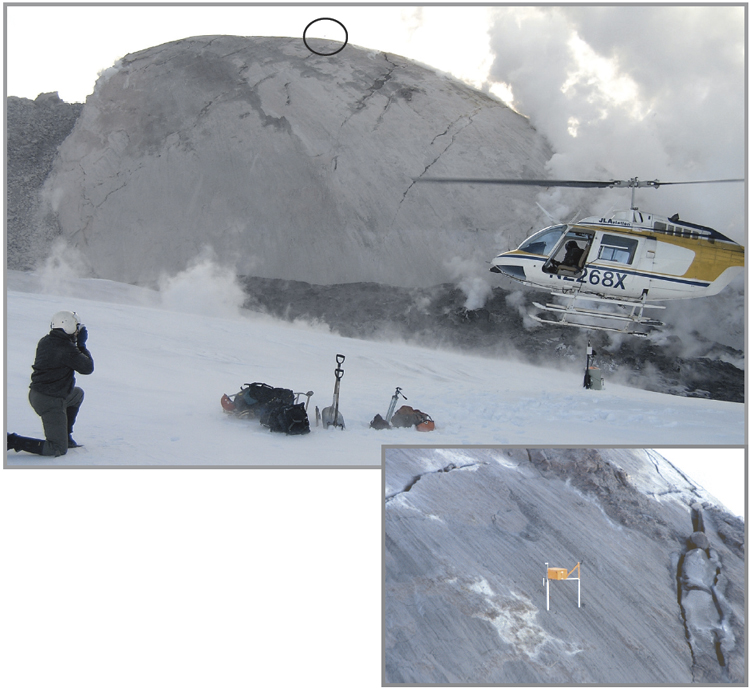

Figure 5. View of north side of the new lava dome from a location immediately south of 1980-1986 lava dome. Circle shows the location of an instrument station on the dome. Inset shows the instrument station, a “tilt-leg spider” package named CDAN, on top of the north-face of the new dome. This station housed a GPS unit and a seismometer until it was destroyed by an explosion on January 16, 2005, 36-hours after placement. (USGS photos, January 14, 2005).
