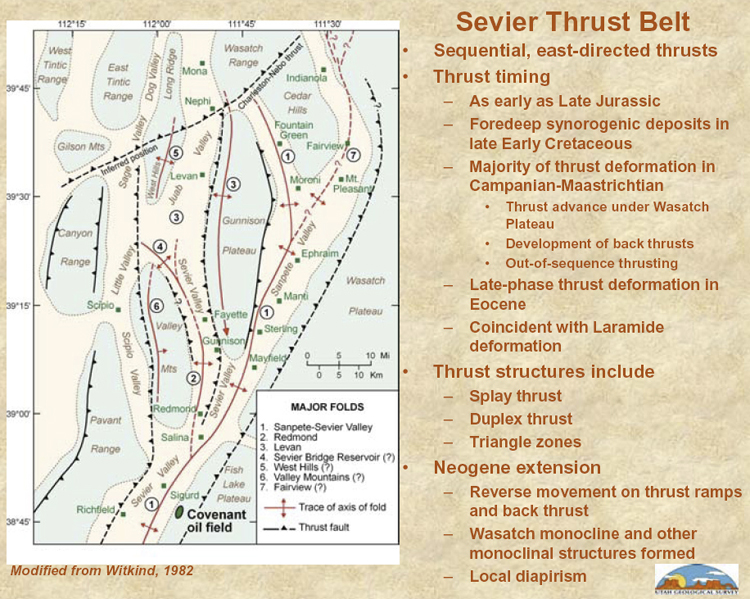

Figure 24. Sevier thrust belt (modified from Witkind, 1982). Structural history of the central Utah thrust belt. The key items include thrusting that was sequential and began in Late Jurassic to late Early Cretaceous. Thrusting ended in Eocene and was likely coincident with Laramide deformation. Neogene extension is also a part of the structural history.
