--> Figure 15-78

Datapages, Inc.Print this page

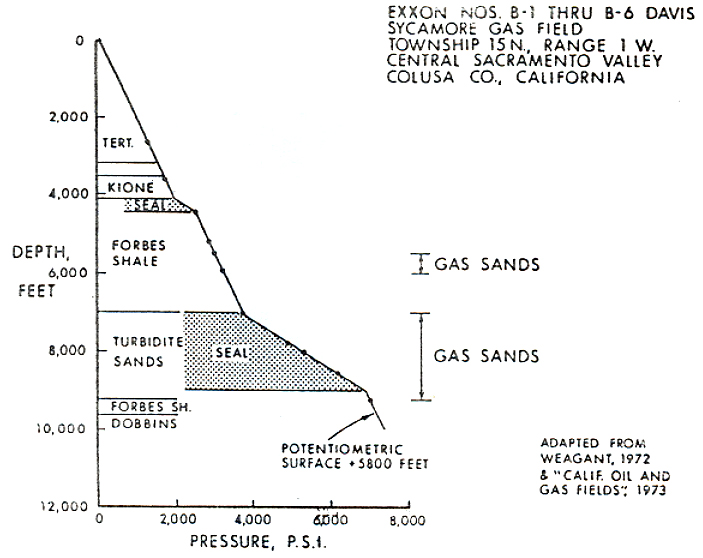

Figure 15-78. Pressure/depth profile, Sycamore Field, California, showing a linear increase of pressure with depth in layers of the Forbes turbidite sand interval.
