--> Figure 15-53

Datapages, Inc.Print this page

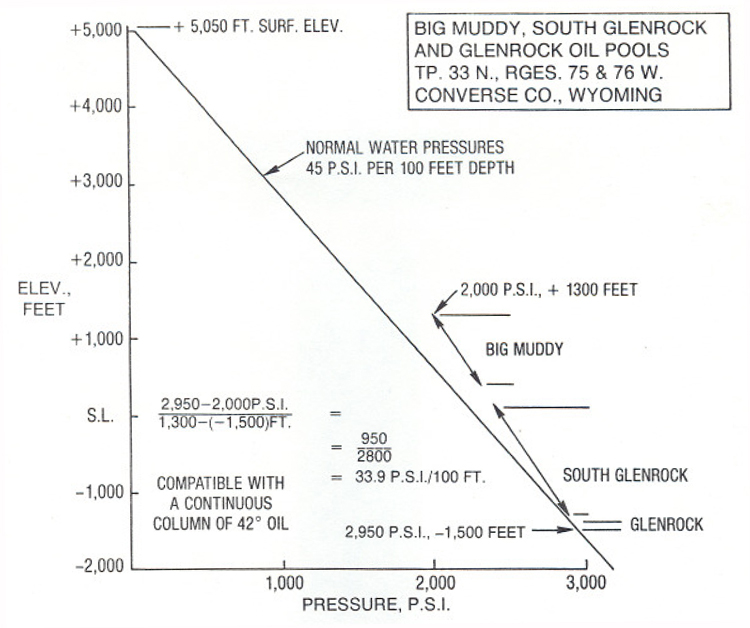

Figure 15-53. Pressure/elevation profiles, Big Muddy, South Glenrock and Glenrock oil pools, Converse County, Wyoming, illustrating the idea that the oil is the pressure-transmitting medium from field to field.
