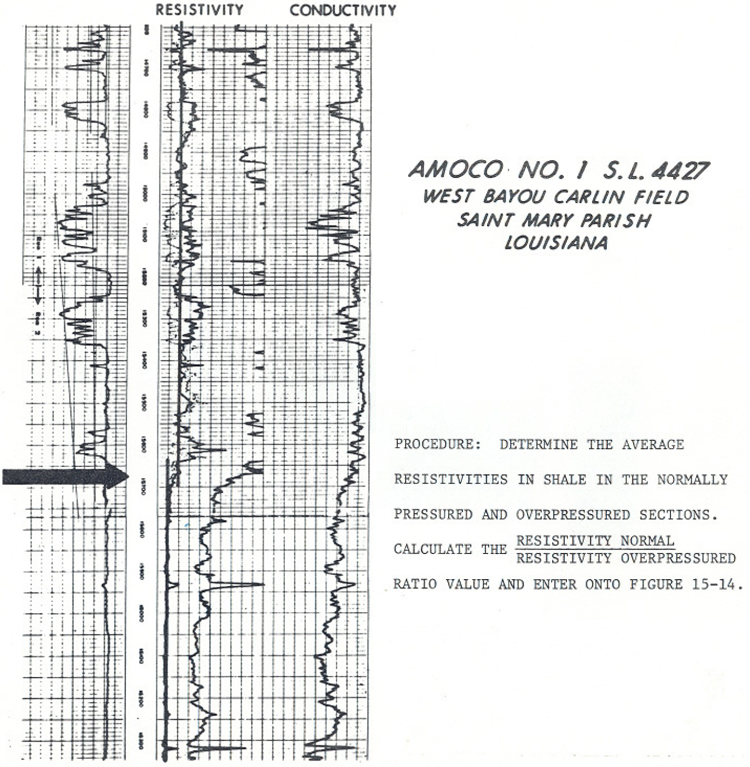

Figure 15-13. Shale resistivity highlighted on log of Amoco No. 1 S.L. 4427, St. Mary Parish, Louisiana, to show a section with normal pressures above an overpressured section.
