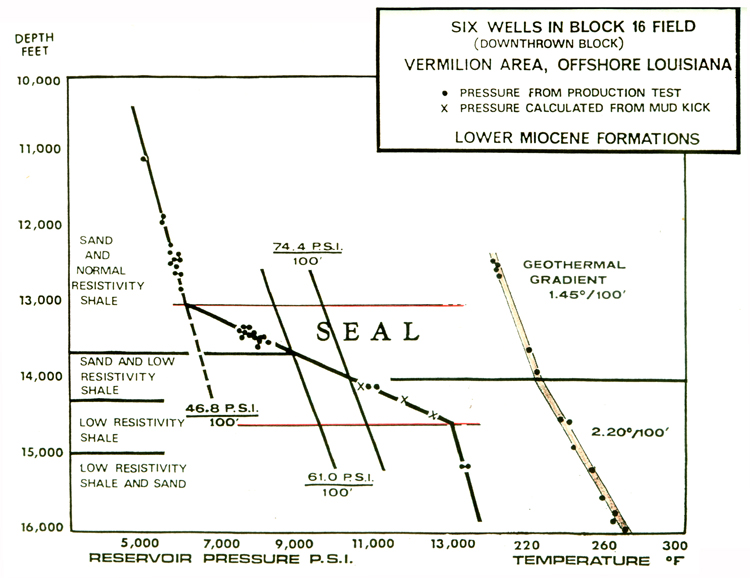

Figure 24. Pressure/depth profile and geothermal gradient for six wells in Block 16 Field, Vermilion Area, offshore Louisiana. Top of higher geothermal gradient corresponds to about 75 psi/100 ft pressure gradient.
