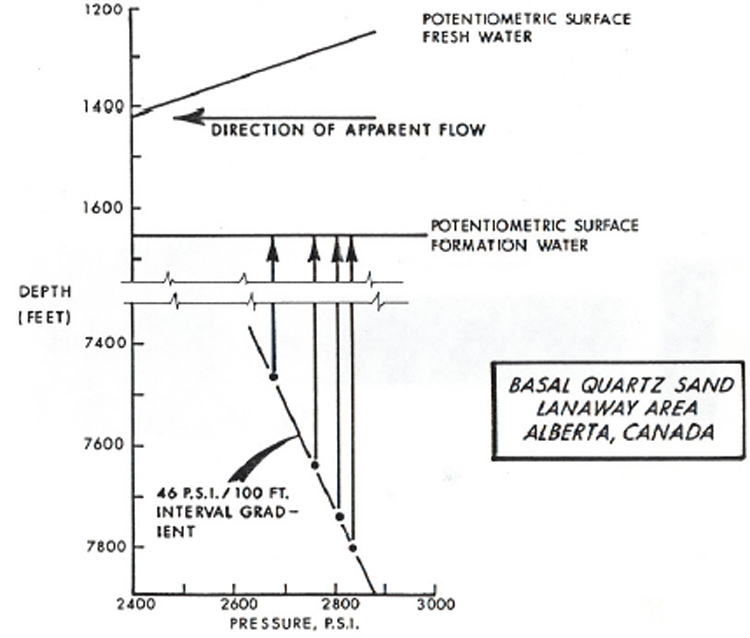

Figure 16. Potentiometric surfaces calculated from two densities of water. With density of 46 psi/100 ft, the surface is horizontal; if the water is fresh, with density of 43 psi/100 ft, the surface is tilted.
