GCMulticomponent Seismic: A Pragmatist's Primer*

By

Chris Thompson1

Search and Discovery Article #40155 (2005)

Posted June 10, 2005



*Adapted from the Geophysical Corner column, prepared by the author and entitled “Multi-C Survey Cost May be Value,” in AAPG Explorer, June, 2005. Appreciation is expressed to Alistair Brown, editor of Geophysical Corner, and to Larry Nation, AAPG Communications Director, for their support of this online version.

14C Exploration Ltd. (cthompson@4CExploration.com)



General Statement

Among the many acronyms in the oil industry, we now have "3C" and "4C" and even "9C" seismic data. The "C" stands for "component." Onshore, three-component data have one vertical and two horizontal geophones and are used to record the entire seismic waveform, both compressional (P) wave particle motion and the less familiar shear (S) wave particle motion.

Offshore, a hydrophone is added to the three-component geophone to create a "4C" receiver. Here the hydrophone records accelerations while the geophones record velocity; the difference in response is used to stack out surface multiples.

The least common of the acronyms is "9C" seismic, which is available only onshore. Here a controlled polarization shear and compressional source and three-component geophones yield a three-by-three matrix of source-receiver orientation combinations.







uGeneral statement

uFigure captions

uRecording, processing

uGas clouds

uLow P-impedance sands

uEconomics

uReferences





























uGeneral statement

uFigure captions

uRecording, processing

uGas clouds

uLow P-impedance sands

uEconomics

uReferences































uGeneral statement

uFigure captions

uRecording, processing

uGas clouds

uLow P-impedance sands

uEconomics

uReferences































uGeneral statement

uFigure captions

uRecording, processing

uGas clouds

uLow P-impedance sands

uEconomics

uReferences































uGeneral statement

uFigure captions

uRecording, processing

uGas clouds

uLow P-impedance sands

uEconomics

uReferences



























Figure and Table Captions

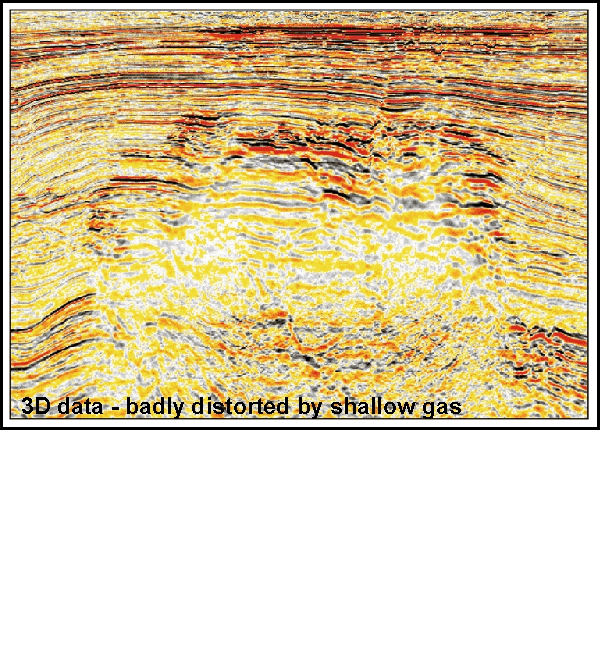

Figure 1. Imaging through gas clouds. Normal 3-D streamer data (top) from a deepwater field in Indonesia is badly distorted by shallow gas. The converted wave section (bottom) from the 4C survey successfully imaged the shallow gas reservoir and the underlying structure. (Image from Battie et al., 2000.)

Click to view the normal 3-D streamer data and converted wave section in sequence.

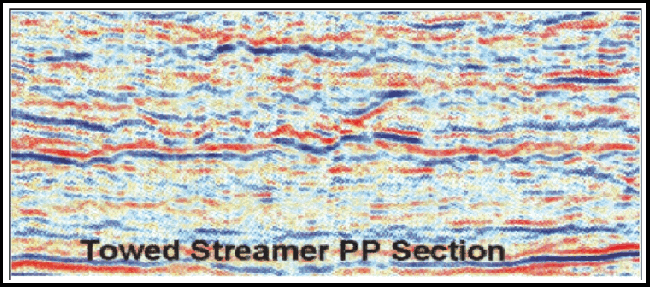

Figure 2. Low P-wave contrast sands. The normal P-wave section (top) shows almost no reflections from the Alba Field reservoir. The converted wave section (bottom) shows clear high amplitude reflections from the same sands. (Image from MacLeod et al., 1999a,b.)
