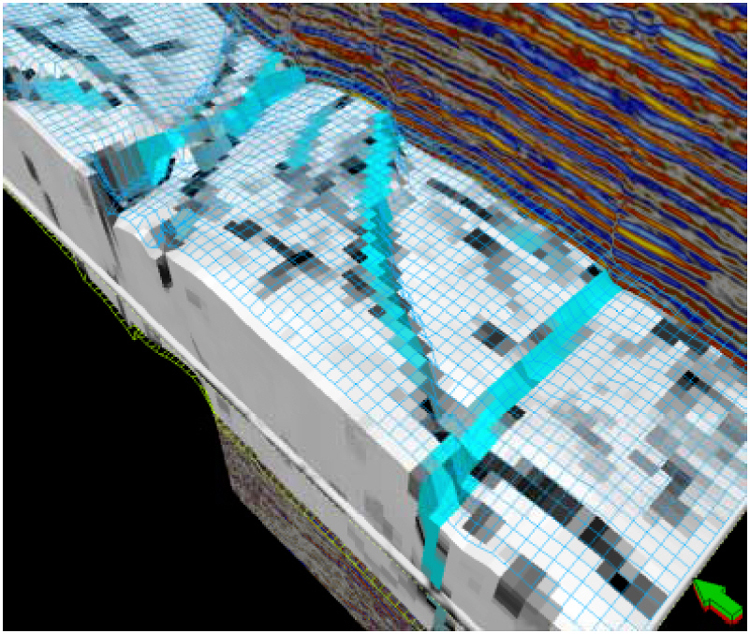

Figure 13. Voxel information extracted from structural smoothing, frequency filtering, discontinuity processing (Variance), followed by fault enhancement (Ant-tracking). The fault enhanced seismic volume is re-sampled to a 3D property grid. Within the geologic modeling process, properties, such as permeability, can be assigned to the fault expression based on a threshold value.
