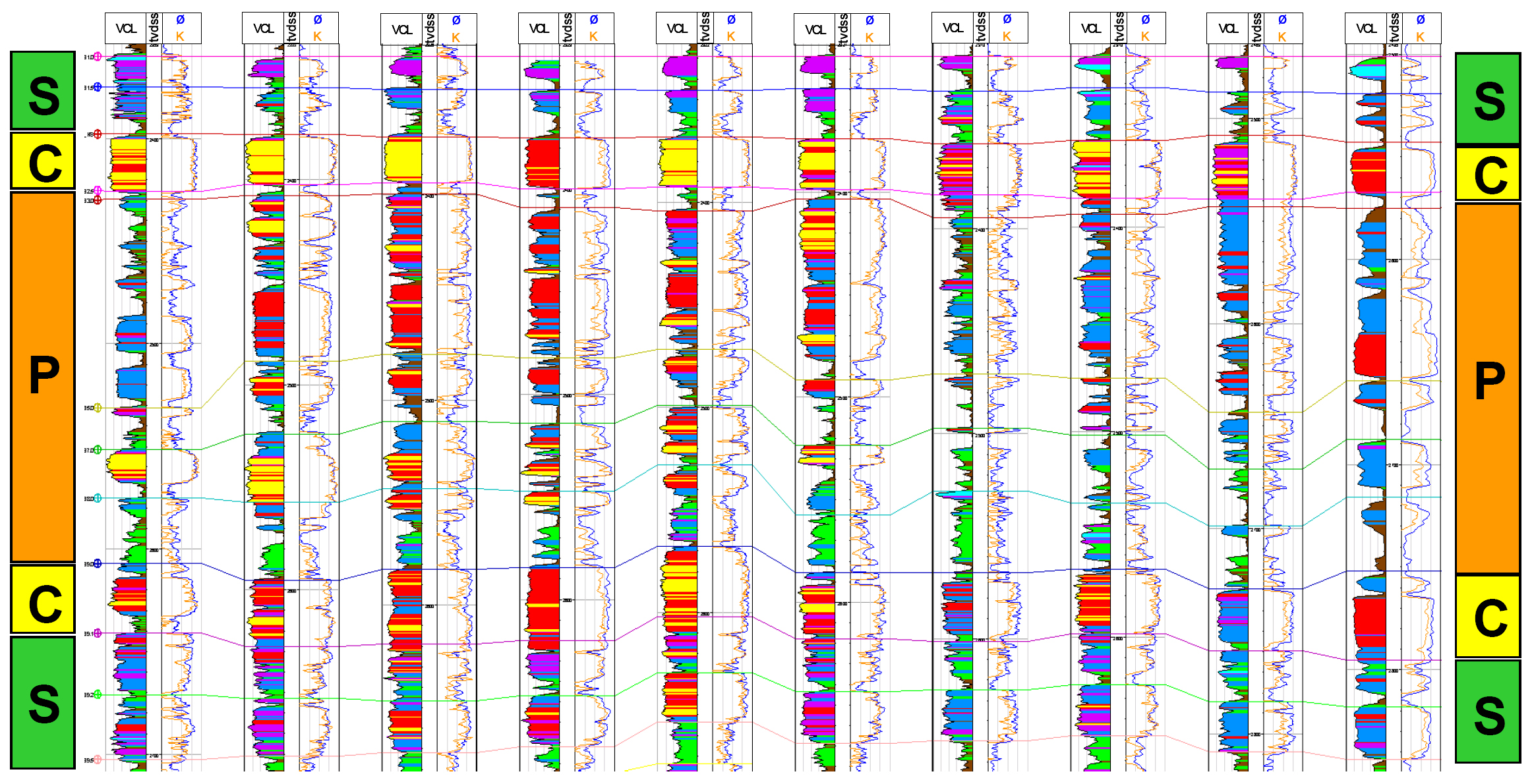

Figure 9. A North (left) to South (right) cross-section panel from Bokor field, illustrating the contrast between laterally heterogeneous lower coastal plain deposits (P) and laterally continuous shoreline/shoreface (C) and shoreface/shelf (S) deposits. Vertical heterogeneity is prevalent throughout, resulting in numerous stacked reservoirs. Tracks for each wellbore show the volume of clay infilled, with electrofacies on the left and porosity and permeability on the right.
