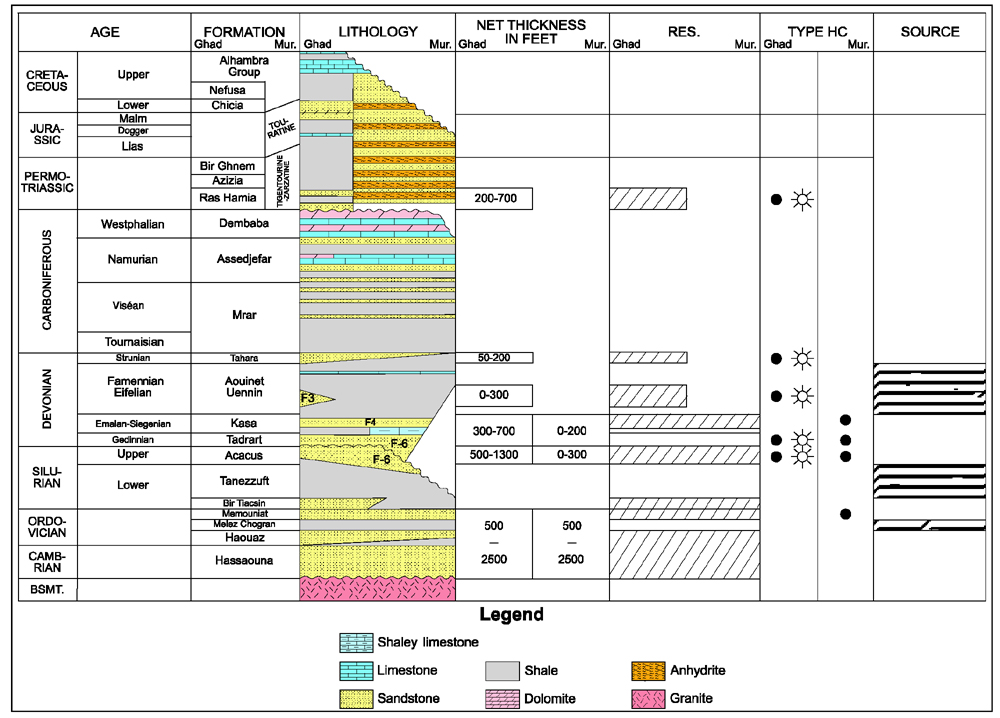

Figure 6. Generalized correlation chart for the Ghadamis and Murzuq basins, showing lithology, source rock, and reservoir (from Rusk, 2001, 2002).
-->
Click on image for enlargement.

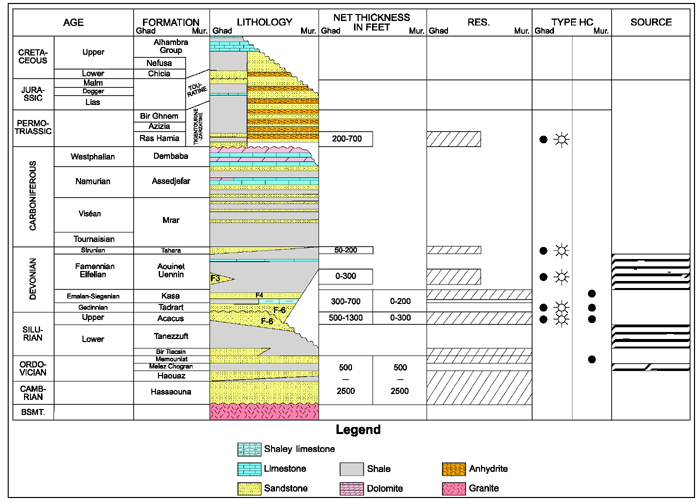

Figure 6. Generalized correlation chart for the Ghadamis and Murzuq basins, showing lithology, source rock, and reservoir (from Rusk, 2001, 2002).
