Petroleum Geology of Cuu Long Basin - Offshore Vietnam*

By

Nguyen Du Hung1 and Hung Van Le1

Search and Discovery Article #10062 (2004)



*Adapted from “extended abstract,” entitled “Hydrocarbon Geology of Cuu Long Basin – Offshore Vietnam,” for presentation at the AAPG International Conference, Barcelona, Spain, September 21-24, 2003.



1Hoan Vu JOC, Ho Chi Minh, Vietnam



Abstract

The Cuu Long basin is a Tertiary rift basin on the southern shelf of Vietnam. It covers an area of approximately 25,000 km2 (250 x 100 km). The basin was formed during the rifting in Early Oligocene. Late Oligocene to Early Miocene inversion intensified the fracturing of granite basement and made it become an excellent reservoir.

In spite of some discoveries in the Oligocene-Miocene clastics and volcanic sections, fractured granite basement is still the main target of Cuu Long basin. Tectonic activities play a key role in creating and enhancing the fractures in the basement. Five major oil fields produce predominantly from the basement. The Bach Ho (White Tiger) is a giant oil field with recoverable reserve is 1.0-1.4 mmmbbls. The other oil fields are Rong (VSP), Rang Dong (JVPC), Ruby (Petronas) and Su Tu Den (CLJOC). Their recoverable reserves range from 100 to 400 mmbbls. The tops of these basement structures are usually at 2500 to 3000 mss with about 1000-1500 m oil column. Recently, another discovery was made by Hoan Vu JOC on the Ca Ngu Vang prospect, where the basement top is 3700 mss. This is the deepest basement structure in Cuu Long basin that has found oil. The DST flow rates from the main producing zone (4430 mss) are 2600 bopd, 6.8 mmscfgd, without water.

The basement rocks are usually overlain directly by a prolific and widespread Upper Oligocene source rocks. Geochemical data from many wells in the basin suggest that the oils found in the basin are of this source rocks.

The article notes the controls of the fractured reservoir in the basement of Cuu Long basin, the method to predict the fracture occurrence, and review the other factors of the petroleum system in the basin.







uAbstract

uFigure captions

uGeologic setting

uPetroleum system

  uPlay concept

  uSource rock

  uFractured basement reservoir

uOil fields

  uBach Ho field

  uRong field

  uRuby field

  uRang Dong fields

  uSu Tu Den fields

  uCa Ngu Vang prospect

uAcknowledgements

uReferences



































uAbstract

uFigure captions

uGeologic setting

uPetroleum system

  uPlay concept

  uSource rock

  uFractured basement reservoir

uOil fields

  uBach Ho field

  uRong field

  uRuby field

  uRang Dong fields

  uSu Tu Den fields

  uCa Ngu Vang prospect

uAcknowledgements

uReferences





































uAbstract

uFigure captions

uGeologic setting

uPetroleum system

  uPlay concept

  uSource rock

  uFractured basement reservoir

uOil fields

  uBach Ho field

  uRong field

  uRuby field

  uRang Dong fields

  uSu Tu Den fields

  uCa Ngu Vang prospect

uAcknowledgements

uReferences





































uAbstract

uFigure captions

uGeologic setting

uPetroleum system

  uPlay concept

  uSource rock

  uFractured basement reservoir

uOil fields

  uBach Ho field

  uRong field

  uRuby field

  uRang Dong fields

  uSu Tu Den fields

  uCa Ngu Vang prospect

uAcknowledgements

uReferences





































uAbstract

uFigure captions

uGeologic setting

uPetroleum system

  uPlay concept

  uSource rock

  uFractured basement reservoir

uOil fields

  uBach Ho field

  uRong field

  uRuby field

  uRang Dong fields

  uSu Tu Den fields

  uCa Ngu Vang prospect

uAcknowledgements

uReferences



Figure Captions

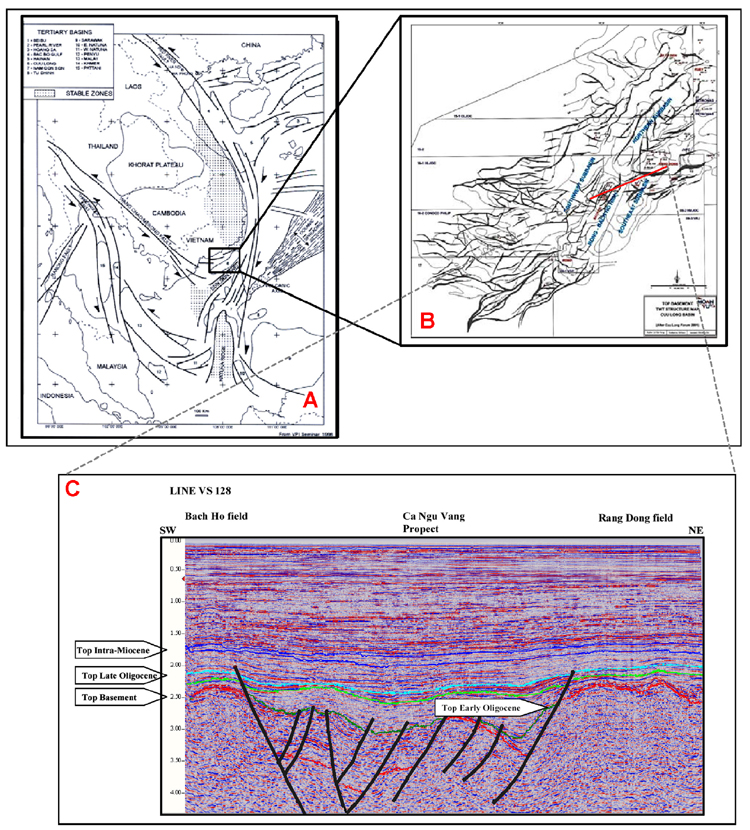

Figure 1. A. Tectonic map of Vietnam and environs, including Tertiary basins. B. Tectonic map of Cuu Long basin. C. Seismic line across two fields and prospect in Cuu Long basin.
