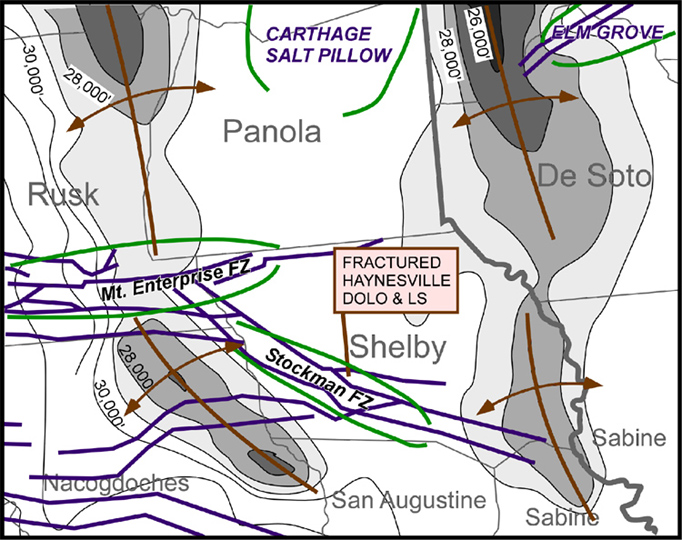

-->  Figure 3. Magnetic depth to basement in the Sabine area, also showing significant fault zones and salt features. Fractured Haynesville limestone and dolomite is productive in the Stockman trend of Shelby County; Haynesville shale is prevalent over most of the area shown. Depth to basement map courtesy of Earthfield Technology.
