--> Grain size distribution for monocrystalline quartz from image analysis for an example cataclastic deformation zone and undeformed host rock.

Datapages, Inc.Print this page

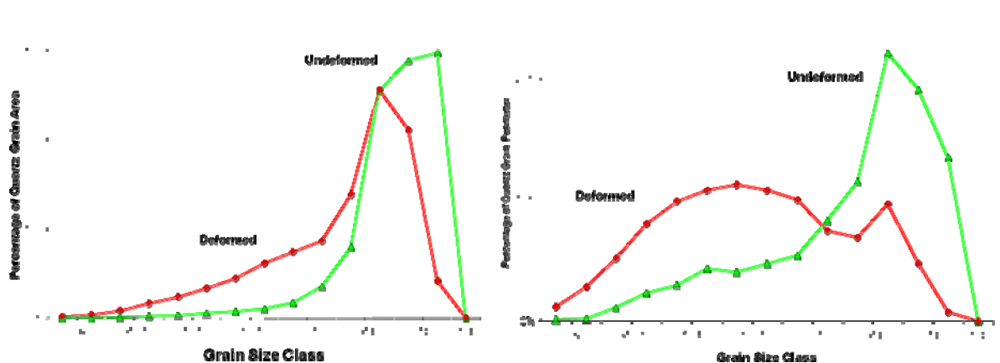

Figure 2. Grain size distribution for monocrystalline quartz from image analysis for an example cataclastic deformation zone and undeformed host rock. The plot on the left shows the size distribution as normalized by grain area (a 2D proxy for volume) whereas the right plot shows the distribution as normalized by perimeter (a 2D proxy for surface area)
