AAPG/GSTT HEDBERG CONFERENCE

Mobile Shale Basins – Genesis, Evolution and Hydrocarbon Systems”

June 4-7, 2006 – Port of Spain, Trinidad & Tobago





Growth and dewatering of polygonal fault systems in the Vøring Basin on the mid-Norwegian margin



STEFAN BÜNZ*, STEINAR HUSTOFT AND JÜRGEN MIENERT



Department of Geology, University of Tromsø, Dramsveien 201, N-9037 Tromsø, Norway

* Tel: +47 77646266, Fax: +47 77645600, Email: [email protected], (Corresponding author)





Polygonal fault systems have been identified in more than 50 sedimentary successions on passive continental margins and cratonic basins(Cartwright et al., 2003; Cartwright and Dewhurst, 1998). Such fault systems are composed of small normal faults that are organized into polygonal networks best observed in plan view. This non-tectonic class of fault systems is layer-bound and occurs in fine-grained sediments. The development of these faults commences at an early stage of burial. The formation of polygonal fault systems results from sediment contraction and subsequent pore fluid expulsion (Cartwright and Lonergan, 1996). The processes leading to contraction and water expulsion are still debated (Cartwright et al., 2003; Goulty, 2002). Possible processes involved in their development include syneresis of colloidal sediments (Cartwright and Lonergan, 1996) and compaction due to gravitational loading (exceptionally low coefficients of friction) (Goulty and Swarbrick, 2005). Understanding of such fault systems is important as they might interact with adjacent reservoirs (Stuevold et al., 2003), and because they might control fluid flow on a regional scale (Henriet et al., 1991).

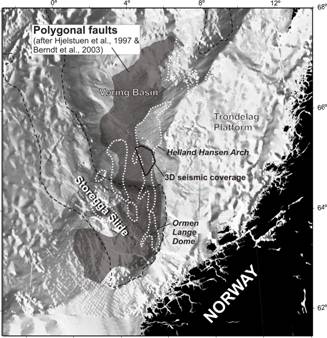

Figure 1: Distribution of polygonal faults on the Norwegian Margin after Hjelstuen et al. (1997) and Berndt et al. (2003). The 3D seismic data used for this study is located in the southeastern Vøring Basin on top of the Helland Hansen Arch, a major compressional dome structure.


Polygonal faults systems on the Norwegian Margin are widespread (Figure 1) (Berndt et al., 2003; Hjelstuen et al., 1997). They occur in the two dominant sedimentary basins, the Vøring and the Møre basins, within the Brygge and Kai formations, but have also been discovered in Late Cretaceous sediments in the vicinity of the Ormen Lange dome (Stuevold et al., 2003). Berndt et al. (2003) suggested that polygonal faulting and fluid expulsion in the upper Brygge and Kai formation sediments is an ongoing process since Miocene times. Here we use 3D seismic imaging techniques to map fault throws throughout a whole tier in order to investigate the growth and compaction history of the faults and its dewatering system. The 3D seismic data used in this study is from the southeastern Vøring Basin (Figure 1). It is located on top of a major compressional dome structure, the Helland Hansen Arch. Here, polygonal faulting occurs in sediments of the Brygge formation. Polygonal faults of this age have been interpreted also in the Møre Basin from the area of the Ormen Lange Dome, where they interact with a major gas reservoir (Stuevold et al., 2003).

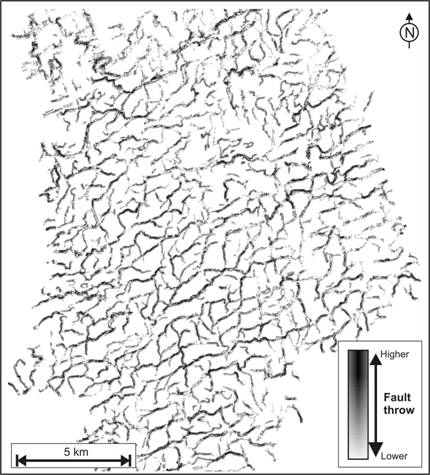

Figure 2: Fault throw map of a horizon from approximately the middle of the tier. The polygonal nature of the slide can be clearly recognized. This map shows quite some variation of fault throw throughout the whole area. The highest throws (up to 90 – 100 ms) occur on WSW – ENE striking faults in the southeastern half of the interpreted area. The throw of faults striking about N – S to NW – SE is about half as high (50 – 60 ms). In general, fault throws in the northeastern half are smaller and fault density appears to be lower.





















The polygonal faults above the Helland Hansen dome span over a depth interval of about 1500 m. They cover an area that is clearly larger than that of the 3D seismic coverage. However, data quality is rather poor in the northern half; therefore main mapping was concentrated in the southern half of the 3D block. The polygonal fault pattern is clearly observed in plan view (Figure 2) showing some curved to rectangular shape. The first results show that in general, our maps illustrate some significant variation in fault throw throughout the mapped area. The polygonal fault system can be described by two characteristic fault systems. The “major” faults dominantly strike in WSW – ENE direction (Figure 2), and have a maximum throw of about 90 to 100 ms with an average of about 50 – 60 ms. These faults are particularly developed in the southwestern half of the interpreted area where fault density also appears to be denser. The primary strike of the intersecting “minor” faults is approximately between N – S and NW- SE (Figure 2). These faults have a maximum throw of about 50 – 60 ms with an average of about 20 – 30 ms and are generally shorter than the “major” faults.



Variation in fault throws and fault density across the mapped area may be attributed to variation in grain size (Dewhurst et al., 1999). However, the WSW – ENE strike of the “major” faults coincides with the strike of large normal faults that are situated underneath the tier suggesting that the growth of the polygonal faults in this area may be linked to tectonic stresses. Sediments above the polygonal fault system show evidence for fluid flow. There appears to be a link between the density of such fluid flow features and the polygonal faulting. Both, the growth of the polygonal faults and its link to fluid flow have to be further investigated, but the quantitative study of fault throws throughout the whole tier shows great potential in advancing our understanding of polygonal fault systems.



References



Berndt, C., S. Bünz, and J. Mienert, 2003, Polygonal fault systems on the mid-Norwegian margin: A long term source for fluid flow, in P. Van Rensbergen, R. Hillis, A. Maltman, and C. Morley, eds., Subsurface Sediment Mobilization: Geological Society Special Publication, v. 216: London, UK, Geological Society of London, p. 283-290.

Cartwright, J., D. James, and A. Bolton, 2003, The genesis of polygonal fault systems; a review, in P. van Rensbergen, R. Hillis, A.-J. Maltman, and C.-K. Morley, eds., Subsurface sediment mobilization: Geological Society Special Publications, v. 216: London, United Kingdom, Geological Society of London, p. 223-243.

Cartwright, J. A., and D. N. Dewhurst, 1998, Layer-bound compaction faults in fine-grained sediments: Geological Society of America Bulletin, v. 110, no. 10, p. 1242-1257.

Cartwright, J. A., and L. Lonergan, 1996, Volumetric contraction during the compaction of mudrocks: A mechanism for the development of regional-scale polygonal fault systems: Basin Research, v. 8, no. 2, p. 183-193.

Dewhurst, D. N., J. A. Cartwright, and L. Lonergan, 1999, The development of polygonal fault systems by syneresis of colloidal sediments: Marine and Petroleum Geology, v. 16, no. 8, p. 793-810.

Goulty, N. R., 2002, Mechanics of layer-bound polygonal faulting in fine-grained sediments: Journal of the Geological Society, v. 159, p. 239-246.

Goulty, N. R., and R. E. Swarbrick, 2005, Development of polygonal fault systems: a test of hypotheses: Journal of the Geological Society, v. 162, p. 587-590.

Henriet, J. P., B. M. De, and M. Verschuren, 1991, Early fracturing of Palaeogene clays, southernmost North Sea; relevance to mechanisms of primary hydrocarbon migration: Special Publication of the European Association of Petroleum Geoscientists, v. 1, p. 217-227.

Hjelstuen, B. O., O. Eldholm, and J. Skogseid, 1997, Voring Plateau diapir fields and their structural and depositional settings: Marine Geology, v. 144, no. 1-3, p. 33-57.

Stuevold, L. M., R. B. Faerseth, L. Arnesen, J. Cartwright, and N. Moller, 2003, Polygonal faults in the Ormen Lange Field, More Basin, offshore Mid Norway, in P. van Rensbergen, R. Hillis, A.-J. Maltman, and C.-K. Morley, eds., Subsurface sediment mobilization, v. 216: London, United Kingdom, Geological Society of London, p. 263-281.
