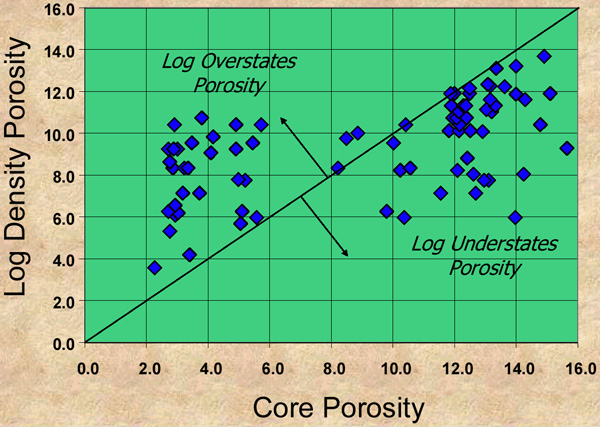

Figure 48. Core-log porosity, where porous and highly cemented intervals are less than than 1.5 feet thick, in Bivins Ranch No. 4-3 and No. 6-2, showing that log porosity is too high for tight intervals and too low for porous intervals.
