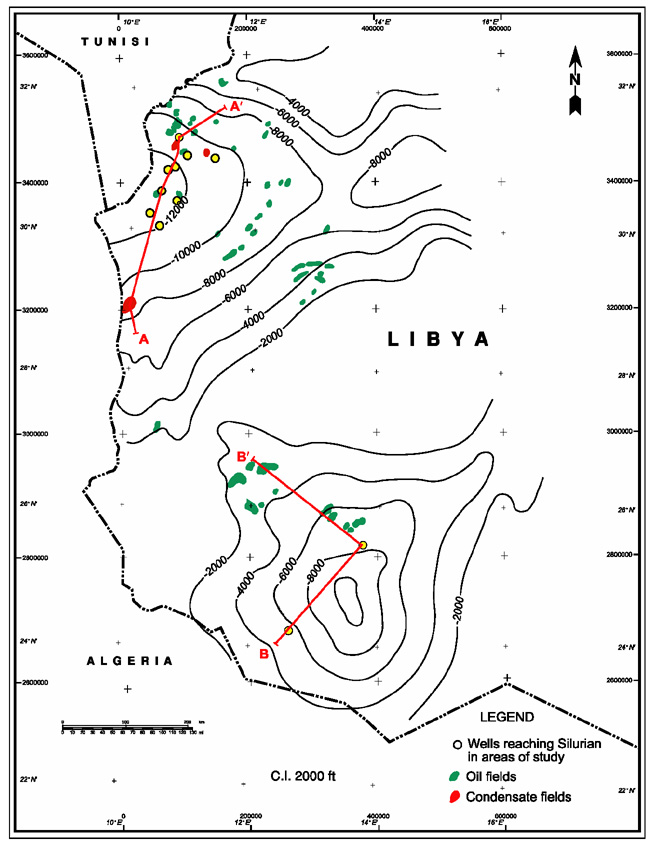

Figure 13. Structure map on the top Ordovician, Ghadamis, and Murzuq Basins, showing oil and gas fields and discoveries. Also shown are locations of cross sections A-A’ and B-B’ shown in Figure 14. Adapted from Masera Corporation (1992).
