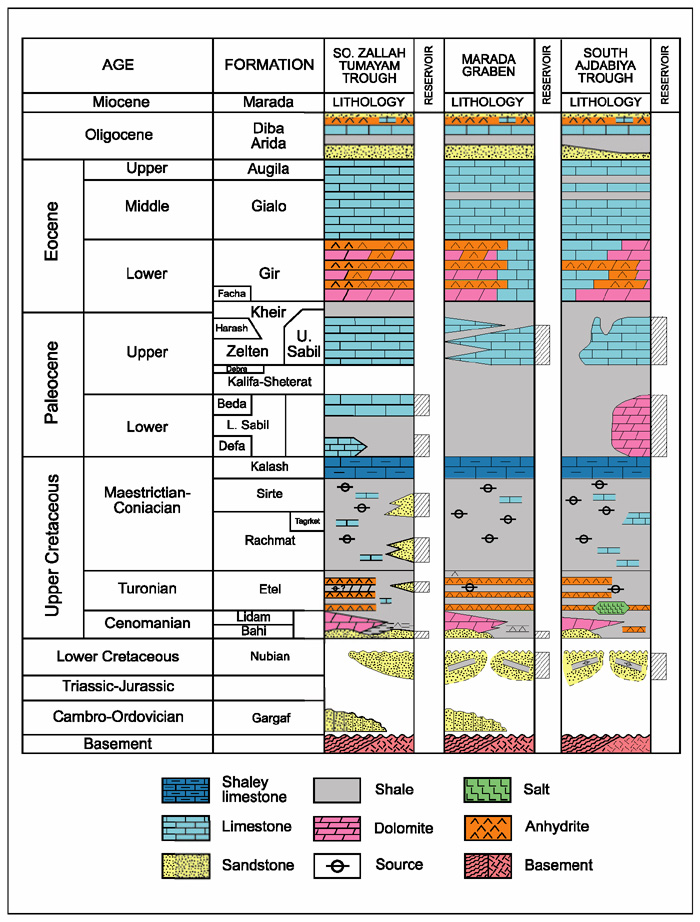

Figure 3. Generalized stratigraphic correlation chart of the Sirt Basin study areas: south Ajdabiya trough, Maradah graben, and south Zallah trough–Tumayam trough. The main reservoir and source intervals are indicated on the chart. Hachured boxes represent main reservoirs.
