--> Figure 12

Datapages, Inc.Print this page

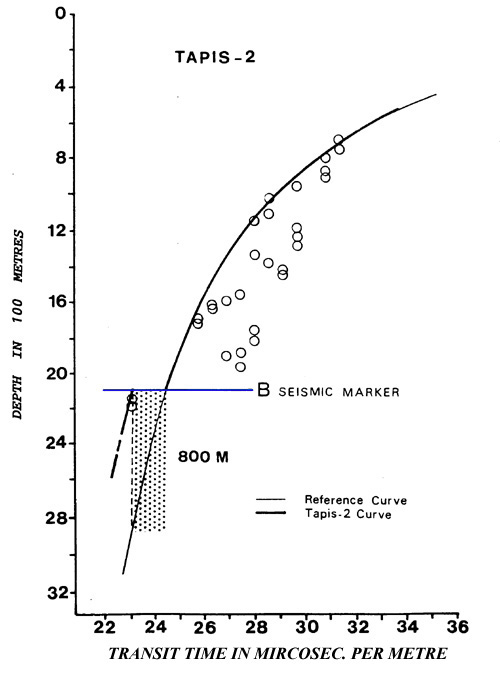

Figure 12--Depth-transit time plot for Tapis- . This plot is coincident with reference curve (from Banggol-1 assumed to depict present depth as maximum depth) only above seismic marker B, suggesting that some 800 m of Pulai-II section have been eroded.
