DEPTH CONVERSION*

Jeremy J. Zimmerman1

Search and Discovery Article #40023 (2001)



1Nuevo Energy Company, Houston, TX ([email protected]).

*Adapted for online presentation from article entitled “It’s All a Matter of Space and Time” by the same author in Geophysical Corner, AAPG Explorer, December, 1996. Appreciation is expressed to the author and to M. Ray Thomasson, former Chairman of the AAPG Geophysical Integration Committee, and Larry Nation, AAPG Communications Director, for their support of this online version.

Introduction

Most geoscientists in the petroleum industry are dealing with the problem that seismic information is usually displayed in some form of a time section, be it a time stack section or a time-migrated section. Drillers, engineers, geologists, geophysicists, and earth scientists in general describe the earth in depth, as in “x” number of feet to target, “x” number of feet of oil column, etc. How do you get easily from time to depth? The answer depends on the desired level of complexity, which is usually dictated by how soon something is needed or how much it will cost.

The overall process is called depth conversion, although some prefer to be more rigorous and call it depth migration. The simplest definition of depth conversion is the conversion of some measurable time quantity into some understandable value in depth. The old joke of when someone asks how deep is the well and the junior geoscientist responds that “it’s about three seconds ...” pops into many people’s minds when dealing with representations of well progress with respect to a chosen seismic section. So just how do we convert from time to depth?

The purpose of this article is to introduce geoscientists to some basic ideas about depth conversion as well as give examples of when it is appropriate to use a given method. It is not meant to be a rigorous dissertation of depth migration.





tIntroduction

tFigure Captions

tRaypath Concept

tExamples

tMap Migration

tConclusion











































tIntroduction

tFigure Captions

tRaypath Concept

tExamples

tMap Migration

tConclusion











































tIntroduction

tFigure Captions

tRaypath Concept

tExamples

tMap Migration

tConclusion





























































tIntroduction

tFigure Captions

tRaypath Concept

tExamples

tMap Migration

tConclusion













































tIntroduction

tFigure Captions

tRaypath Concept

tExamples

tMap Migration

tConclusion













Figure Captions

Figure 1: Wavefront and raypath orthogonal to wavefront.



Figure 2: Elements of Snell’s Law.

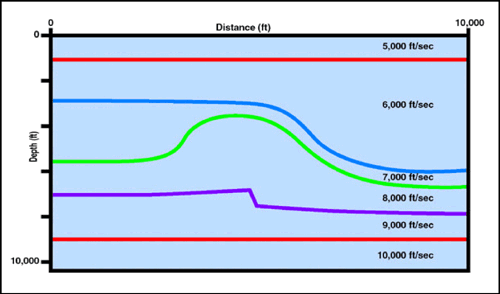

Figure 3: Idealized model.

Click here for sequence of Figures 3 and 7.

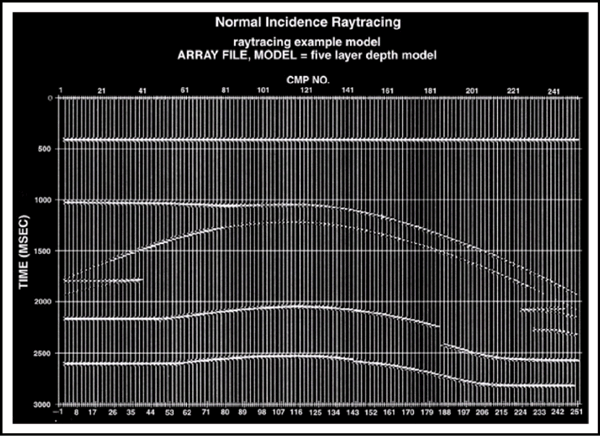

Figure 4: Normal–incidence (time–stack) seismic section.
