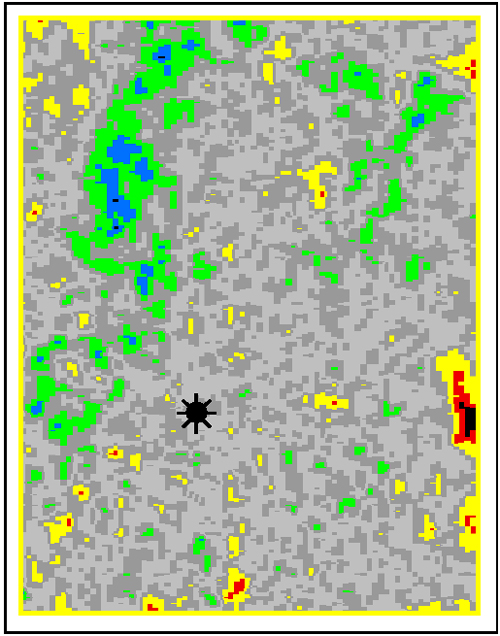

Figure 3. A time slice through the impedance perturbation cube from 3-D prestack inversion. The well symbol shows the location of the well of Figure 1. This slice intersects the reservoir centered at a depth of 9560 ft. Impedance from inversion does not reveal this Lobo reservoir, consistent with impedance log data in Figure 1.
