Figure 4

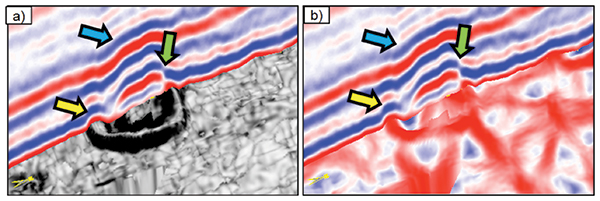

Figure 4. Chair display of seismic amplitude and stratal slices through (a) coherence and (b) most-positive curvature showing differential compaction over a carbonate reef. Yellow arrow indicates the rim or atoll. Strong compaction often gives rise to discontinuities (green arrow). Note compaction drape well above the structure (blue arrow).
