--> Figure 4

Datapages, Inc.Print this page

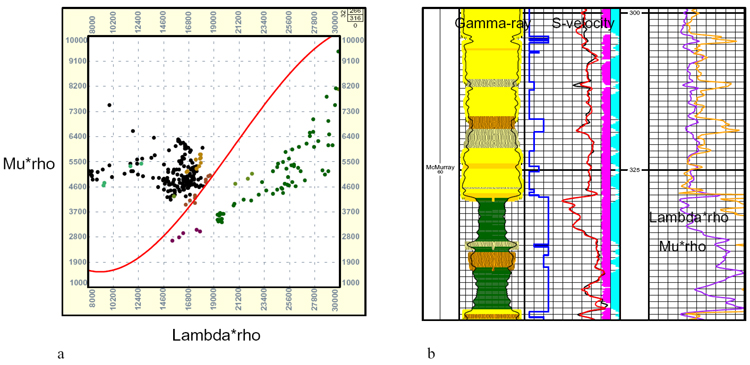

Figure 4. a) Crossplot showing lambda*rho, mu*rho points from well 5-13 colored by facies.  Points above the curve are reservoir facies and points below are non-reservoir. b) Log display for well 5-13.
