--> Figure 2-5

Datapages, Inc.Print this page

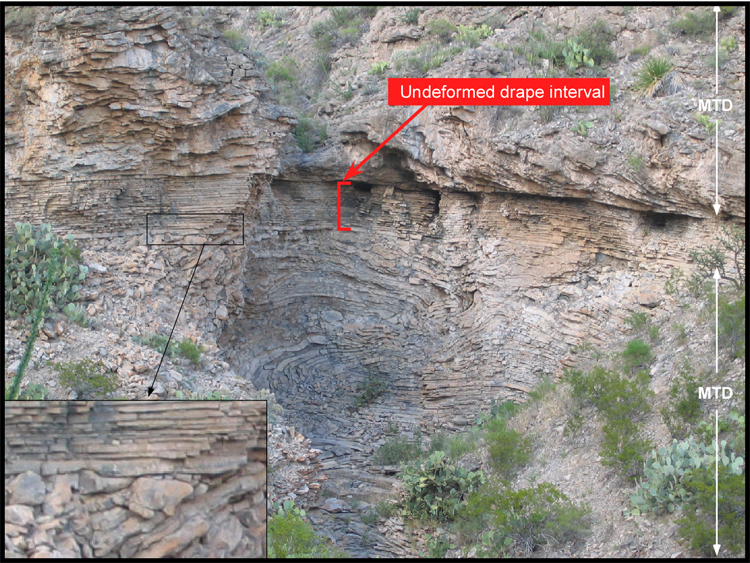

Figure 2-5. Typical Cutoff MTDs. View facing east. Location is southern boundary of the Guadalupe Mountains study area. Height of drape interval = 2 m. Inset: Close-up of base of drape interval infilling irregular surface at top of MTD.
