--> Figure 9

Datapages, Inc.Print this page

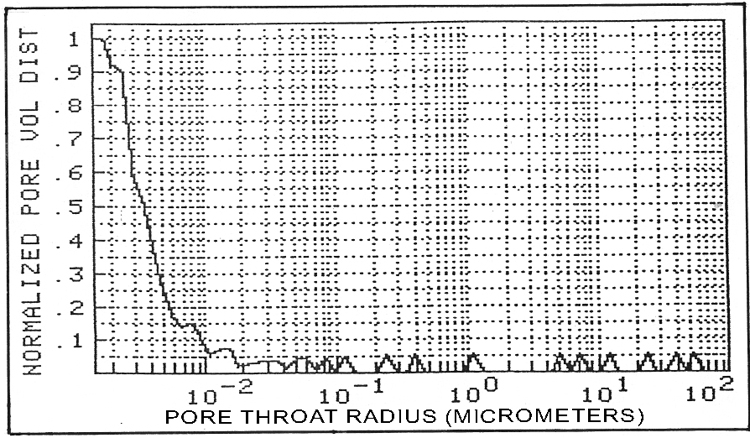

Figure 9. Results of mercury-porosimetery analysis of the Barnett Shale. Eighty percent of the pore throats have a radius of less than 0.005 micrometer. Sample from 8094 ft in Enre Corporation (Chevron), Mildred Atlas #1, Johnson County.
