--> Figure 1-4

Datapages, Inc.Print this page

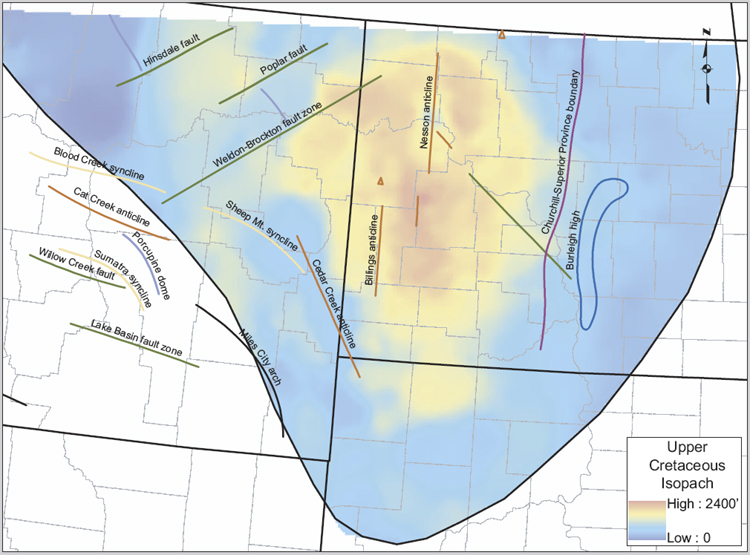

Figure 1-4. Thinning across the Nesson Anticline documents its inception during the latest Cretaceous. Maximum depth of burial and temperature were also reached during the latest Cretaceous.
