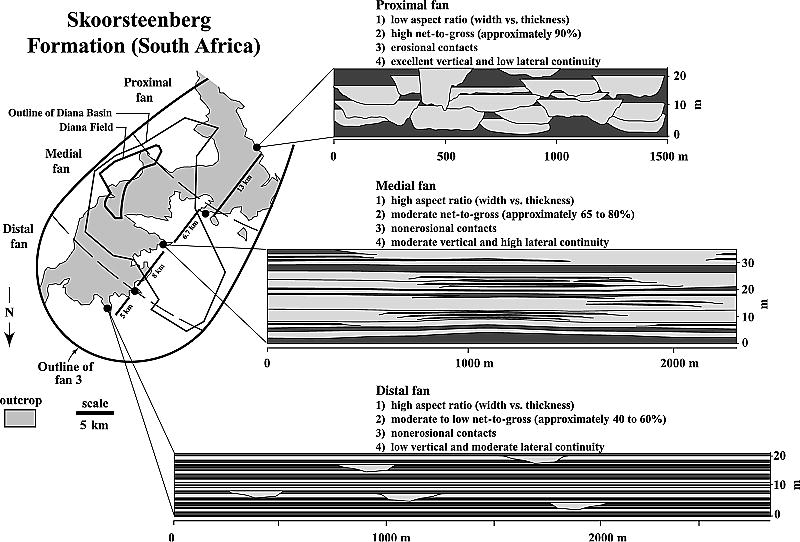

FIGURE 2. The deep-water deposits of the Skoorsteenberg Formation in Tanqua Karoo Basin, South Africa, can be subdivided into proximal, medial, and distal fan settings, each with their own key characteristics. Note the outline of the Diana Subbasin and Diana field projected on to outline of fan 3 of the Skoorsteenberg Formation. The outline of fan 3 is modified from Bouma and Wickens, 1994.
