--> Figure 5

Datapages, Inc.Print this page

Click on image for enlargement.

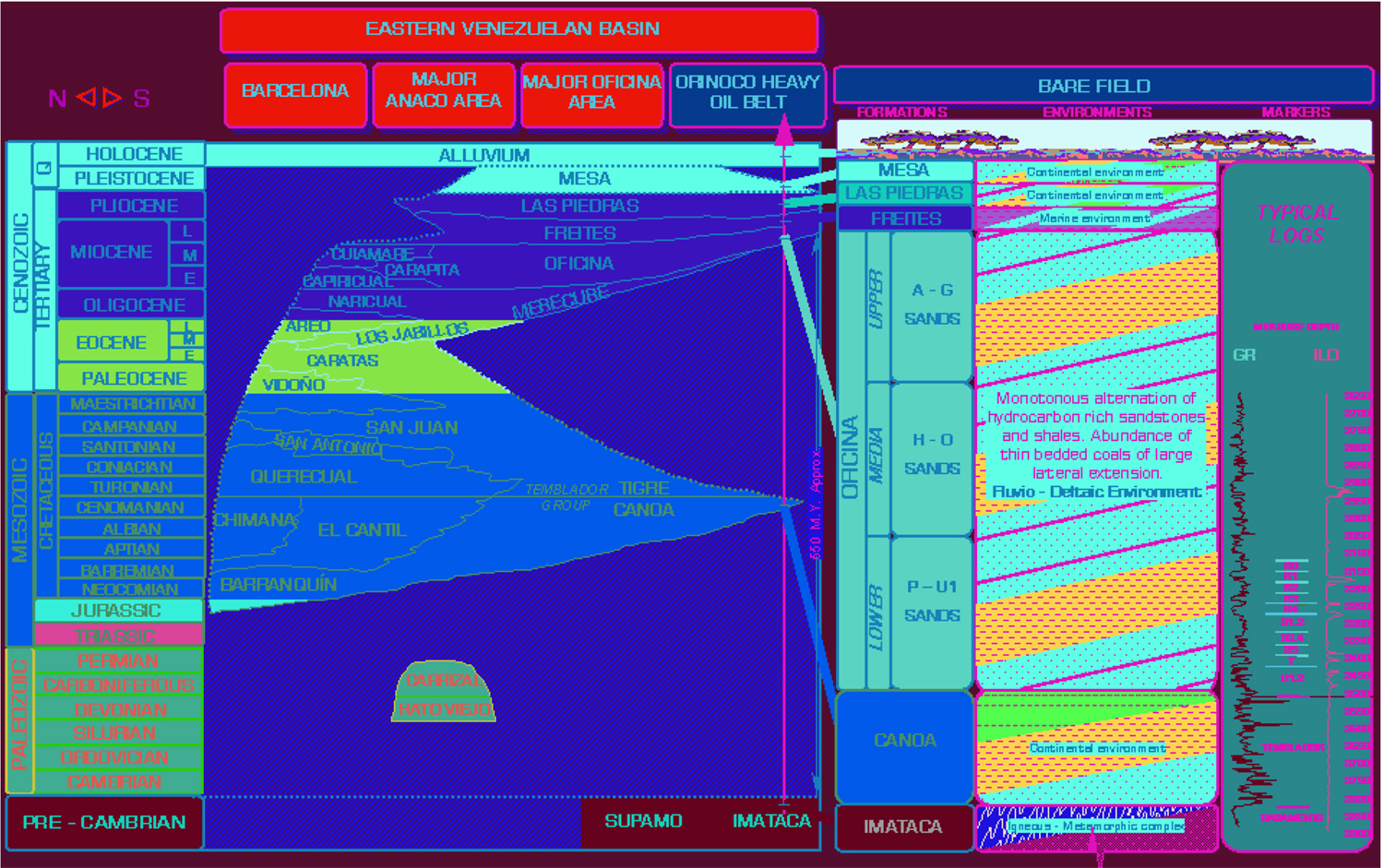

Figure 5. Stratigraphy of the Eastern Venezuelan Basin and the Bare Field. An imaginary well in the Orinoco Heavy Oil Belt in the Bare Field is used to show details of the local stratigraphy. This study assumes the absence of the Oligocene Merecure and the Cretaceous Tigre formations and the presence of the Cretaceous Canoa Formation.
