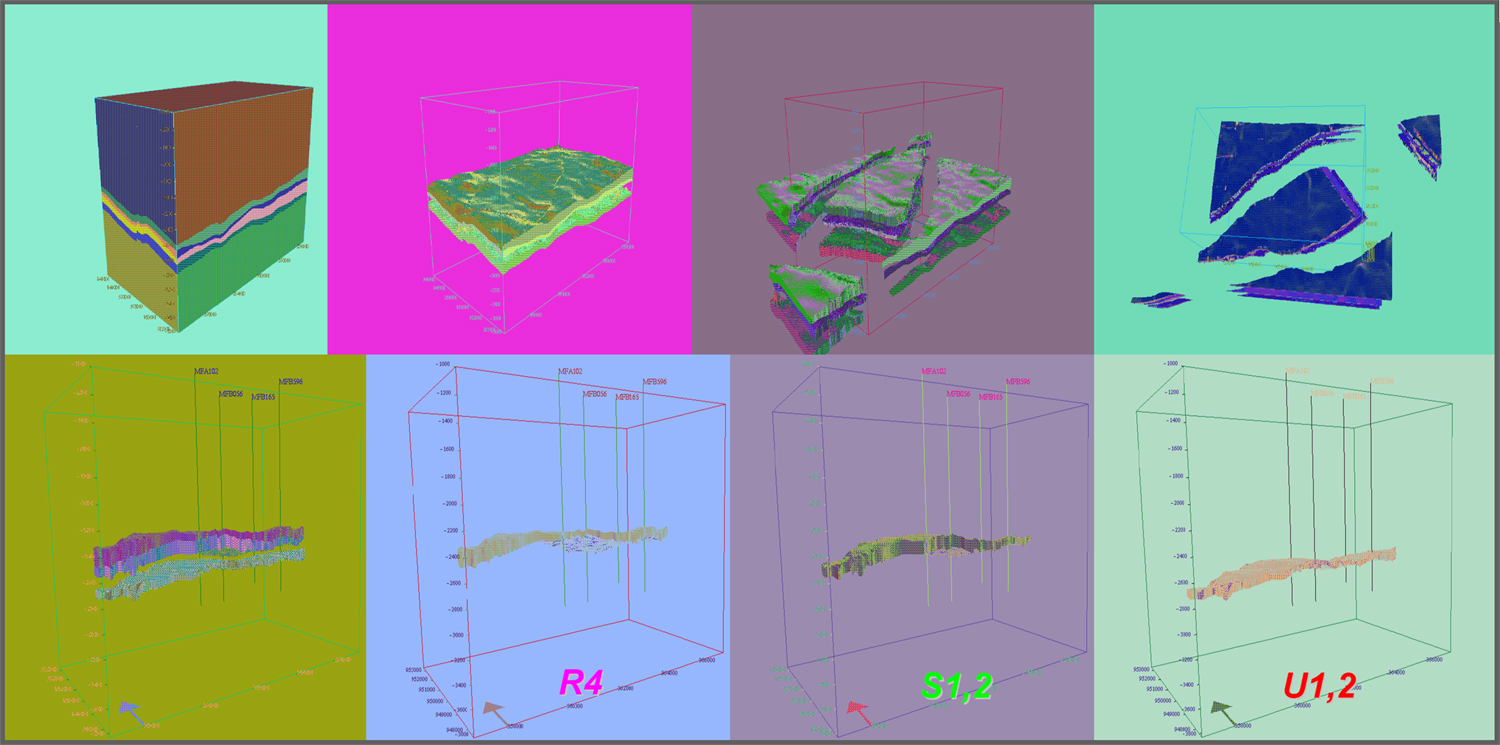

Figure 4. Evolution of the static model. Separation into blocks, with isolation of the sands of economic interest, using the PROPERTY 3D© application. The blocks were defined by the interpreted faults in the area.
