--> Figure 4B

Datapages, Inc.Print this page

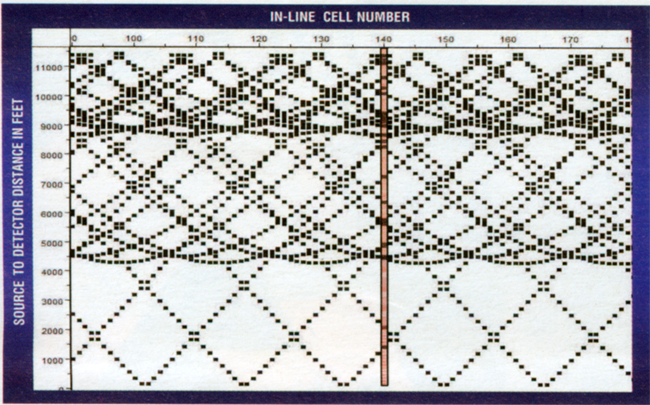

Figure 4B. "Necklace" plot for Wide-Azimuth Design B. This design will produce large gaps in offset domain sampling of the data, where from 0 to 4000 feet there are only two offset traces.
