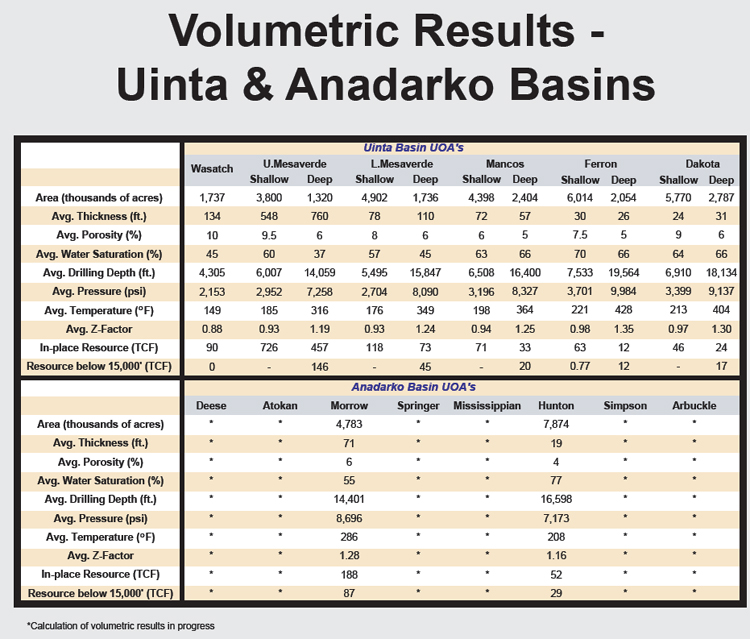

Figure 3.8. Gas-in-place and average volumetric parameters, in tabular form for Uinta Basin and Anadarko Basin UOAs. Average values refer only to the potential pay in each grid cell. For example, 7% porosity means that the average porosity of the zones identified as potential pay over all grid cells is 7%. Total values are the aggregate values for all grid cells.
