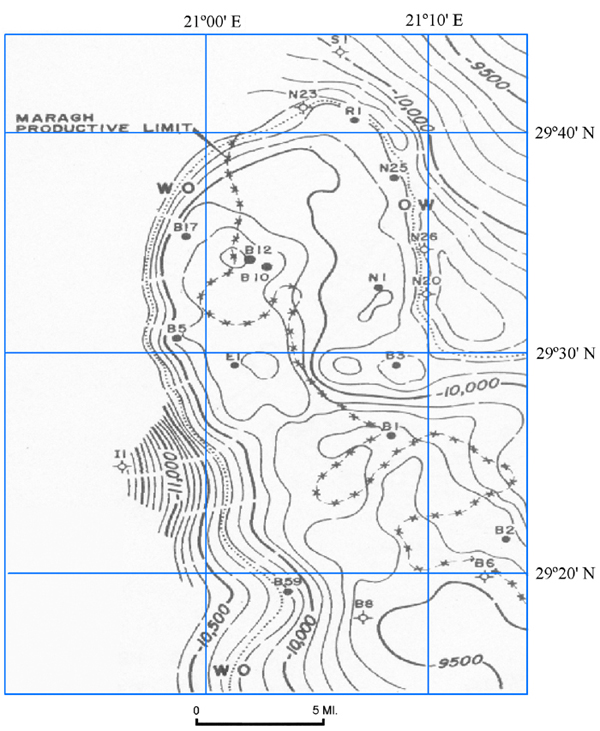

Figure 9. Structural contour map, on base of Upper Cretaceous Rakb Formation, of Amal Field, showing large north-northwest-plunging nose (from Roberts, 1970).
