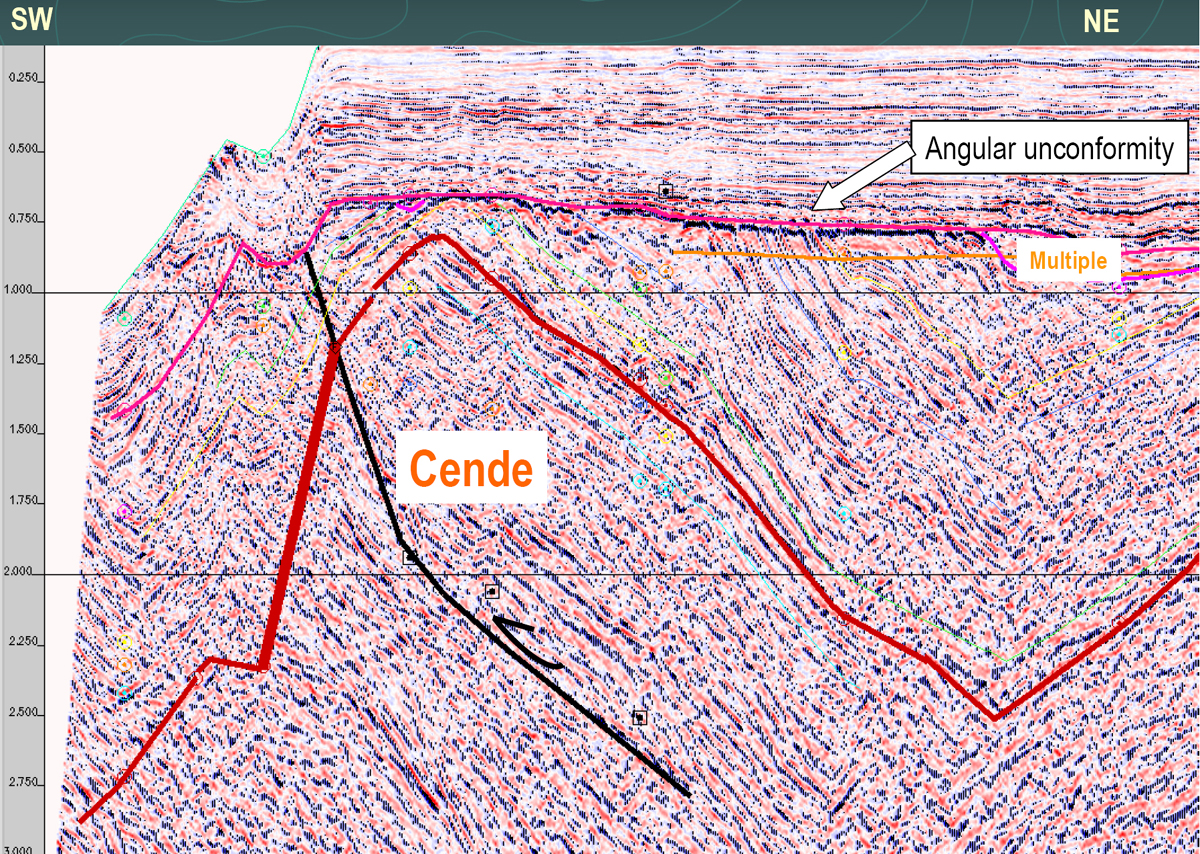

Figure 33. Interpreted seismic line NE-9, from the Aladdin 1988 survey, across Cende prospect, illustrating quite well the amount of dip closure and the unconformity. The thickness of the section has been confirmed by gravity and magnetic data.
