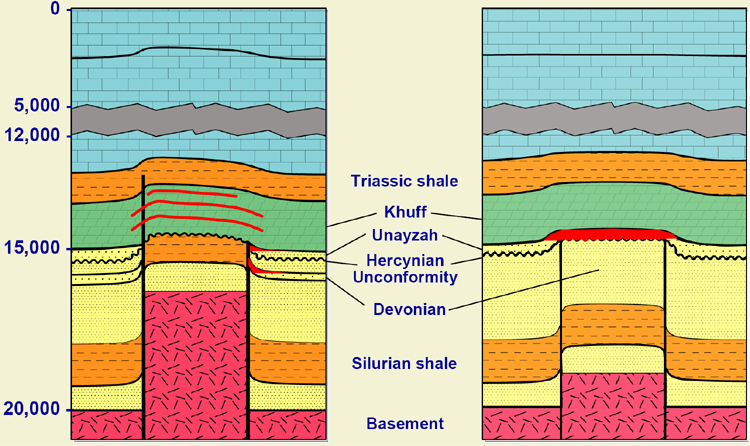

Figure 33. Cross-section of low-relief Hercynian structure, for comparison with high-relief structure, both representative of the Silurian hydrocarbon system.
