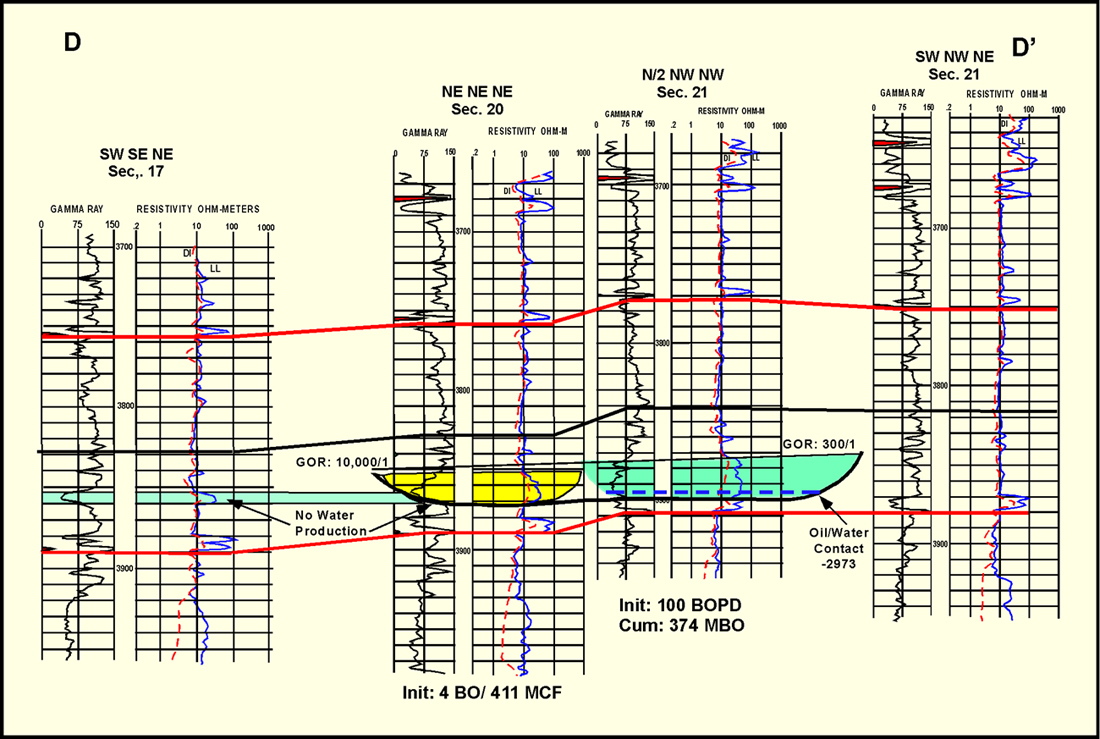

Figure 11. Cross-section D-D', using a common elevation as the datum, with pertinent production data. Two Lower Skinner reservoirs are within the valley-fill deposits, and one is downdip from the paleovalley.
