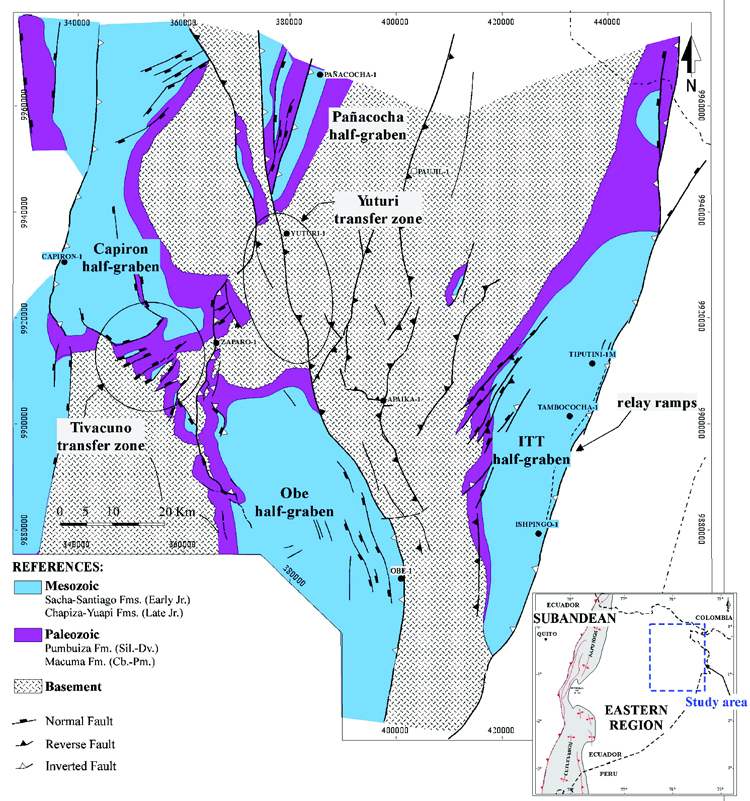

Figure 1-4. Subcrop map at the Aptian unconformity showing the present fault configuration and the pre-Aptian sequences (Precambrian basement, Silurian to Permian pre-rift, and Jurassic synrift) recognized in the Eastern Region of Oriente Basin, Ecuador.
