Paleogene Depocenter along the Northeast Margin of the Maracaibo Basin: Structure along an Exhumed, Eocene Age Lateral Ramp Fault in the Maracaibo Basin, Western Venezuela*

By

Alejandro Escalona1 and Paul Mann2



Search and Discovery Article #30018 (2003)



*Adapted from “extended abstract” for presentation at the AAPG Annual Meeting, Salt Lake City, Utah, May 11-14, 2003.



1Jackson School of Geosciences, Department of Geological Sciences, The University of Texas at Austin, Austin, Texas ([email protected]).

2Jackson School of Geosciences, Institute for Geophysics, The University of Texas at Austin, Texas



Abstract

Two different tectonic models have been proposed for the thick Eocene depocenter located along the northeastern margin of the Maracaibo basin, Venezuela. The first model proposes that the depocenter is a foreland basin controlled by southwestward-directed overthrusting during late Paleocene-middle Eocene collision between the Caribbean and South American plates. The second model proposes that the northeast sedimentary wedge was controlled by a large tear fault, or lateral ramp, separating SE-directed, but independently moving, thrust sheets. Regional seismic lines reveal the structure of the Paleogene depocenter in the northeastern area of the Maracaibo basin. The Burro Negro fault forms a line of separation between shallow to outer shelf, less deformed rocks to the SW from deep marine highly deformed rocks to the NE. Configuration of the basin and faults mapped on regional-scale 2D seismic lines tied to wells supports a tear, or lateral-ramp fault origin, which allowed SE migration of the thrust front east of the Maracaibo basin.







uAbstract

uFigure captions

uIntroduction

uRegional setting

uDatabase & methodology

uTectonic elements

  tForeland basin . . .

  tBurro Negro fault zone

  tChaotic zones

  tEocene Barinas basin

uPaleogene evolution model

uReferences











































uAbstract

uFigure captions

uIntroduction

uRegional setting

uDatabase & methodology

uTectonic elements

  tForeland basin . . .

  tBurro Negro fault zone

  tChaotic zones

  tEocene Barinas basin

uPaleogene evolution model

uReferences













































uAbstract

uFigure captions

uIntroduction

uRegional setting

uDatabase & methodology

uTectonic elements

  tForeland basin . . .

  tBurro Negro fault zone

  tChaotic zones

  tEocene Barinas basin

uPaleogene evolution model

uReferences













































uAbstract

uFigure captions

uIntroduction

uRegional setting

uDatabase & methodology

uTectonic elements

  tForeland basin . . .

  tBurro Negro fault zone

  tChaotic zones

  tEocene Barinas basin

uPaleogene evolution model

uReferences













































uAbstract

uFigure captions

uIntroduction

uRegional setting

uDatabase & methodology

uTectonic elements

  tForeland basin . . .

  tBurro Negro fault zone

  tChaotic zones

  tEocene Barinas basin

uPaleogene evolution model

uReferences

















Figure Captions

Figure 1. Major structures and foreland depocenters of Venezuela. Location of major Cenozoic sedimentary basins and major thrust, lateral ramp and strike-slip faults as product of the collision between the Caribbean plate and northern South America (modified from Stephan, 1985, and Babb and Mann, 1999).

Figure 2. Surface geologic map of the Maracaibo basin region and time-slice map at depth of 3.4 seconds beneath the Lake Maracaibo area.

Figure 3. Fence diagram showing the main structural elements of the central and eastern part of the Maracaibo basin and location of the main faults in the map view.

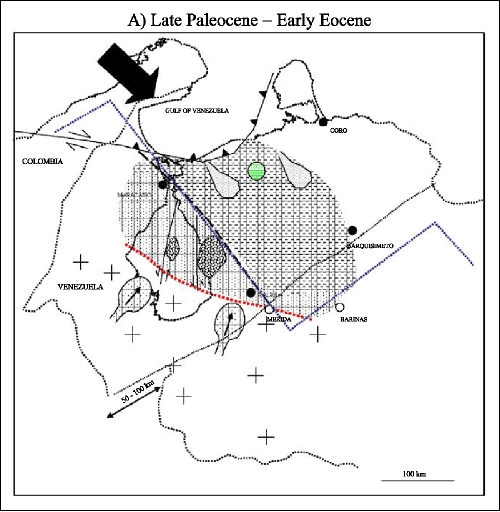

Figure 4. Schematic tectonic reconstruction of northwestern South America during the late Paleocene-Recent. A) Paleocene-early Eocene; B) Middle - late Eocene; C) Late Eocene-Oligocene-Miocene; D) Present distribution of Eocene depocenters after lateral motion along the Boconó fault.
