--> Influence of BHT error (±8oC or 14oF) on calculated age (my, top) and burial depth (ft, lower) of the Jurassic Tuxedni Group source rock at 0.6% vitrinite reflectance (Ro, %; top of oil window) in a pseudowell from the upper Cook Inlet, Alaska.

Datapages, Inc.Print this page

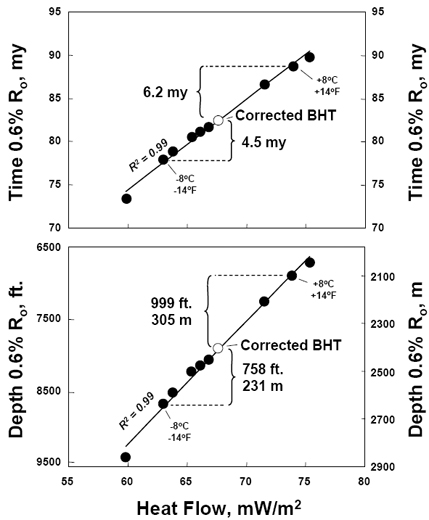

Figure 1. Influence of BHT error (±8oC or 14oF) on calculated age (my, top) and burial depth (ft, lower) of the Jurassic Tuxedni Group source rock at 0.6% vitrinite reflectance (Ro, %; top of oil window) in a pseudowell from the upper Cook Inlet, Alaska. The ten data points are sample error calculations. Open dot is the best fit scenario where Petromod® calibration to a BHT of 92.4oC results in calculated top oil window for the source rock at 82.50 Ma and 2,409 m depth.
